EN60-AL Series Industrial And Commercial Energy Storage All-in-one Machine (Liquid Cooled)
- Commodity name： EN60-AL Series Industrial And Commercial Energy Storage All-in-one Machine (Liquid Cooled)
- Description
- Technical Parameter
- Application Area
-

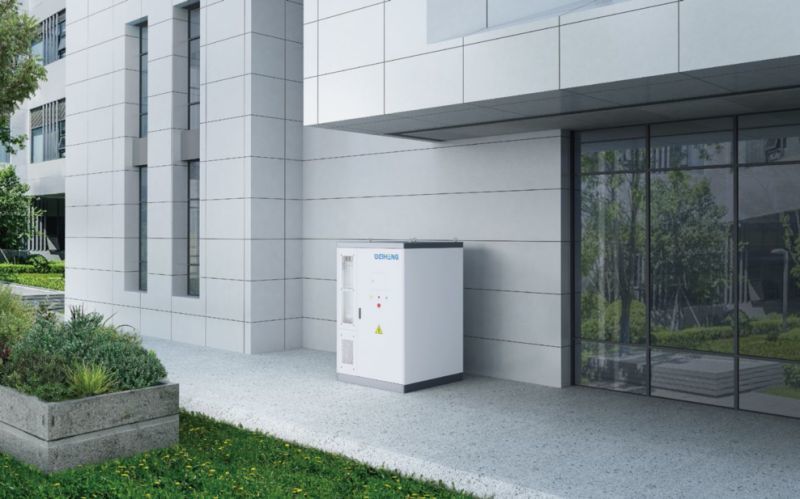

Industrial and commercial energy storage is suitable for applications with high requirements for grid continuity. It can achieve peak valley time shift and staggered electricity consumption, alleviate grid pressure, or be used as a backup power source. It is also suitable for applications in microgrid scenarios.
EN60 series industrial and commercial energy storage all-in-one machine, integrating energy storage inverters, batteries BMS、EMS、 The integration of thermal management, fire protection, and other functions facilitates installation and maintenance. It is a series of highly secure, reliable, and standardized products developed by the company for the field of industrial and commercial application scenarios. It adopts modular system configuration and flexibly matches various industrial and commercial scenarios.

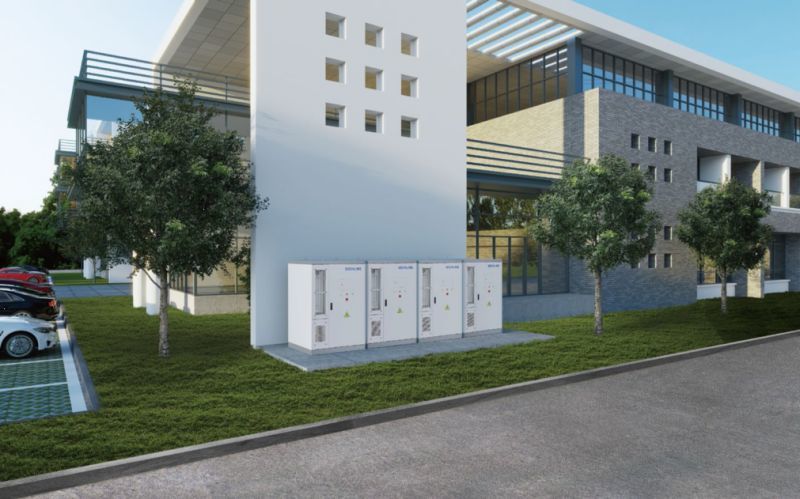

The EN60 series products are divided into two types: integrated models and combination models. The integrated model products are more compact and have high energy density; The combination model product has good adaptability to energy and power, and can be flexibly configured. The ultimate comprehensive system safety design enhances battery performance and extends its lifespan. Multiple devices can be directly connected in parallel to achieve the expansion of energy storage systems.
Efficient Integration Intelligent Liquid Cooling Multi Level Protection An integrated energy storage system, constructing a more convenient transportation and operation mode, achieving rapid installation and put into use. Equipped with a built-in liquid cooling unit, the temperature deviation of the entire system's battery cells is controlled within 3 ℃, achieving a lifespan improvement of up to 20%. A four level management structure provides precise functions such as short circuit protection, overcurrent protection, overvoltage protection, undervoltage protection, and over temperature protection. -
Technical Parameters Of EN60-AL Series Industrial And Commercial Energy Storage All-in-one Machine (Liquid Cooled)
Model EN60-AL-100/233 Battery Parameters Rated Capacity 233kWh Rated Voltage 832V Battery Type LFP (from CATL) Cell Specifications 3.2V 280Ah Series And Parallel Connection Of Battery Packs 1P*52S*5S Communication Parameters (PCS) Rated Power 100kW Rated AC Current 110kW Rated Grid Voltage 400V, 3P+N+PE Rated Grid Frequency 50/60Hz Total Harmonic Distortion Rate Of The Power Grid (%) < 3% (At Nominal Power) Power Factor -1~+1 System Parameter Protection Level IP54 Isolation Method Non-isolated (Optional Transformer) Working Temperature -20~60°C (Derating @ > 45°C) Cooling Method Air Cooling (PCS)
Liquid Cooling (Battery)Maximum Working Altitude Max. 3000m(derating @ >2000m) Communication Interface Modbus, TCP/IP Dimensions (Width * Depth * Height) 1400*1350*2100mm Weight (Including Battery) ~2500kg *If there are changes in product dimensions and parameters, please refer to the latest information without further notice.
-
